# Modular 3D Text

<figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FNliISuWoCTDm1pi3wzNT%2FForum-Head.gif?alt=media&#x26;token=b466f2c9-0242-47ca-b302-52cc29d0ce2c" alt=""><figcaption><p><em>Modular 3D Text is the primary component of the</em> <a href="https://assetstore.unity.com/packages/3d/gui/modular-3d-text-in-game-3d-ui-system-247241?aid=1011ljxWe&#x26;utm_source=aff"><em>Unity Asset</em></a><em>. As the name suggests, it is the component that creates texts.</em></p></figcaption></figure>

<figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FrSbwaiFHspIWL3DYUmhJ%2Fimage.png?alt=media&#x26;token=5f2f7e5a-d6df-4a82-8dc2-97290f57cfb1" alt="3D Text example of Modular 3D Text for Unity"><figcaption></figcaption></figure>

## _<mark style="color:yellow;">Inspector</mark>_

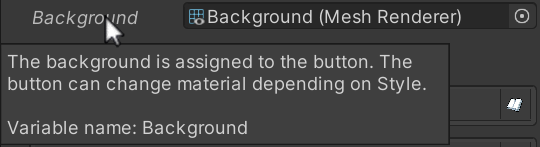

_**Note**: You can hover your mouse and check tooltips for information._<img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FB4LUq4w4shpjxdlIYtEg%2Fimage.png?alt=media&#x26;token=62553d91-5599-4dd5-9058-a1ddcbf5c264" alt="" data-size="line">

### _<mark style="color:yellow;">Main settings</mark>_

_It contains the standard settings to control the text._ \
_You need to apply material here, not to the mesh renderer component._

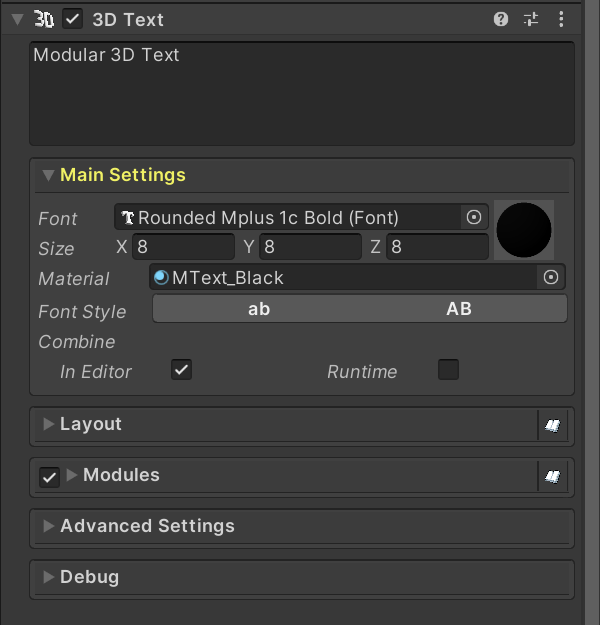

<div align="left"><figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FsheBo5xMZJlkKxpACU24%2Fimage.png?alt=media&#x26;token=37fbeb2d-aab9-441d-b22c-1eae1ac6a5e8" alt="Inspector of Modular 3D Text" width="300"><figcaption></figcaption></figure></div>

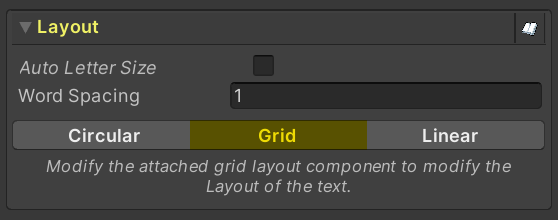

#### _<mark style="color:yellow;">Layout</mark>_

_The layout of the text is controlled by a separate component, the_ [_layout group_](https://ferdowsur.gitbook.io/layout-system/)_. The default text has three types of layouts: Circular, grid, and linear._

<div align="left"><figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FU7dps1yG2aQPW9EPtXRa%2Fimage.png?alt=media&#x26;token=b1200fdd-a25c-48ec-86bf-019d3d5fffdd" alt="" width="279"><figcaption></figcaption></figure></div>

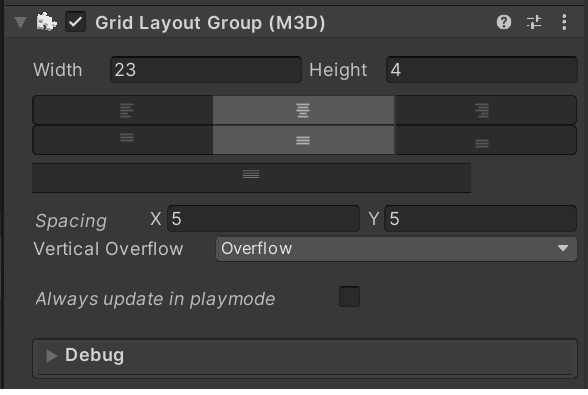

<div align="left"><figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FPLRQUfKM2vDkTWr0HCp5%2Fimage.png?alt=media&#x26;token=e28ba40a-676f-45c2-88c6-403cc1b1cf62" alt="" width="294"><figcaption><p><em>Inspector of the default</em> <a href="https://ferdowsur.gitbook.io/layout-system/layout-group/grid-layout-group"><em>Grid Layout Group</em></a><em>.</em></p></figcaption></figure></div>

#### [_<mark style="color:yellow;">Modules</mark>_](https://ferdowsur.gitbook.io/modular-3d-text/modules/modules)

_Check the_ [_modules section_](https://ferdowsur.gitbook.io/modular-3d-text/modules/modules) _for a detailed explanation._

![](https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FtWzo6TPzBuTWyAdFyH7K%2Fimage.png?alt=media\&token=3d62a0af-e043-470a-96a5-9f179428a919)

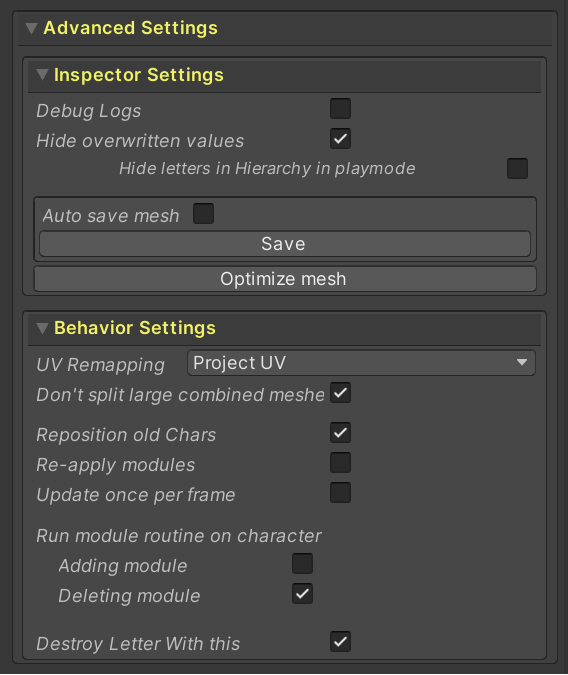

#### _<mark style="color:yellow;">Advanced Settings</mark>_

_Contains two sections: Inspector and Behavior settings. Hover the mouse over them for tooltips explaining which settings do what._

<div align="left"><figure><img src="https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FyS2e4ne4XjCjdP9BTby3%2Fimage.png?alt=media&#x26;token=3997d165-9876-4aa9-900a-8d494d137ab8" alt="" width="284"><figcaption><p><em>Advanced settings for Texts of Modular 3D Text</em></p></figcaption></figure></div>

#### _<mark style="color:yellow;">Debug</mark>_

![](https://1119473059-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MfrUtWCLmsoDLuNCqpm%2Fuploads%2FStaZ9dGMRkqDgwVLMFIJ%2Fimage.png?alt=media\&token=99961b33-3f3d-4933-a1ef-63d8db5ba856)
